A-Level Regression analysis and Scattergraph


Scatter graph

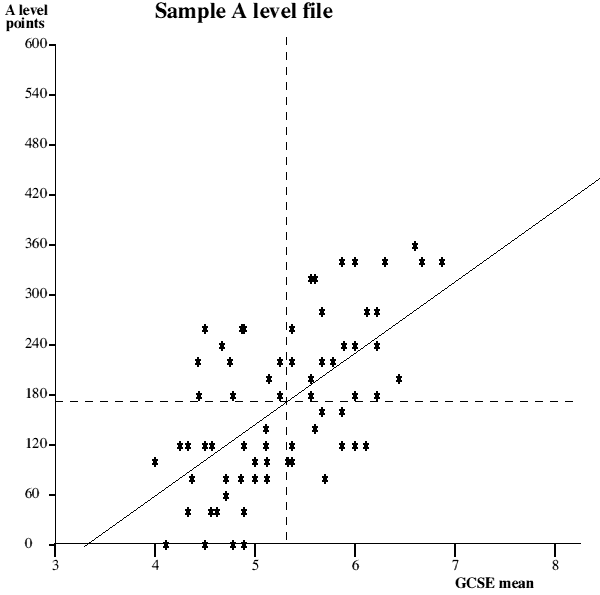

This graph plots the GCSE mean grade along the x axis and the A-level points score along the y axis. Individual pupil performances are shown as asterisks and the line of best fit (regression line) plotted between them giving a visual representation of the correlation between the two variables.

This time Pearson's Product Moment correlation method is used to calculate the correlation co-efficient and may produce a slightly different value to that arrived at using Spearman's formula, the latter being distorted if too many scores are tied.

The vertical dotted line shows the average GCSE mean grade for the group as a whole and the horizontal dotted line shows the average examination performance (A-level points). These are useful in that it is immediately obvious that all those plots in the top right quadrant were better than average in both their indicator score and their examination results. Those plots in the bottom left quadrant were worse than average in both respects. Those plots in the bottom right quadrant had higher than average indicator scores but worse than average examination results, whereas those plots in the top left quadrant had worse than average indicator scores but better than average examination results.

The co-efficient of correlation is also shown as are standard deviation figures for the values on the x and y axes. These latter figures give some idea of the spread of their respective values and the covariance gives a measure of the shared variation in the two variables; the larger this figure is the more linear the appearance of the scattergraph.

The coefficient of determination shows statistically how much of the variation in outcome could be attributed to the variation in input.

The standard error of estimation gives the error margin to be taken account of in any estimate of likely outcome based upon a given indicator score.

Things to consider
By taking a GCSE mean grade value from the x axis and rising vertically until reaching the diagonal line,then going horizontally left to the y axis, it is possible to read off what the likely examination result would be. For instance, by using past performance as an indicator for the future and given that you would know a year group's indicator score before their results it would be possible to feed this in and see what you might expect them to achieve. Similarly one might feed in an individual's GCSE mean score and see if what s/he actually achieved was better or worse than the average for someone of that ability as indicated by the regression line.

Be aware that the line of best fit may seem somewhat skewed because several pupils may be plotted on exactly the same point therefore making it seem that there were far fewer plots on one side of the line than the other.

By squaring the co-efficient of correlation and multiplying by 100 it is possible to produce a figure showing the percentage of variance in one variable that can be attributed to its linear relationship with the other variable.

An interesting exercise is to produce a graph from the combined results of a number of years, finding an average indicator score and the examination mean. One could then enter in the actual average GCSE mean score for a particular year and see if that year's average examination result was higher or lower than the average shown by the regression line.

In using a consortium approach to this analysis one is able to compare one's own school graph with that produced by pupils in other schools.

In this way one can gain a measure of the school's examination performance, value added or not as the case may be. Of course there are other factors to take into account but at least one would have an indicator that takes account of the potential differences in ability of students in different schools.

Graphs such as this are available for each subject taken and, once all data has been received, for combined schools and subject areas. They can also be shown for separate genders.
